Mixer
Description/Usage
8hp
Simple and super useful mixer and line level output with added headphone monitor.
Specs
Power draw: ?
HP: 8
Inputs
3xMixer in : Signals in to mix
Phones in : Audio to monitor on headphones
Outputs
Phones : Headphone output from phones in for live queuing of patches. Is normalled to the mix out if nothing is plugged into phones in
Mix Out : Eurorack level mix from the 3x mixer in
5 1/4“ Out : Line level out for sending to an amp or similar
Knobs
3x input attenuator
Phones input attenuator
Modifications
Normal Phones in to main mix
Normal main mix to phones out
Tips/Tricks
You can use the phones in/out as an attenuator for audio or CV. I've found you can even boost the level slightly. This can come in handy for patching external audio sources into your modular.

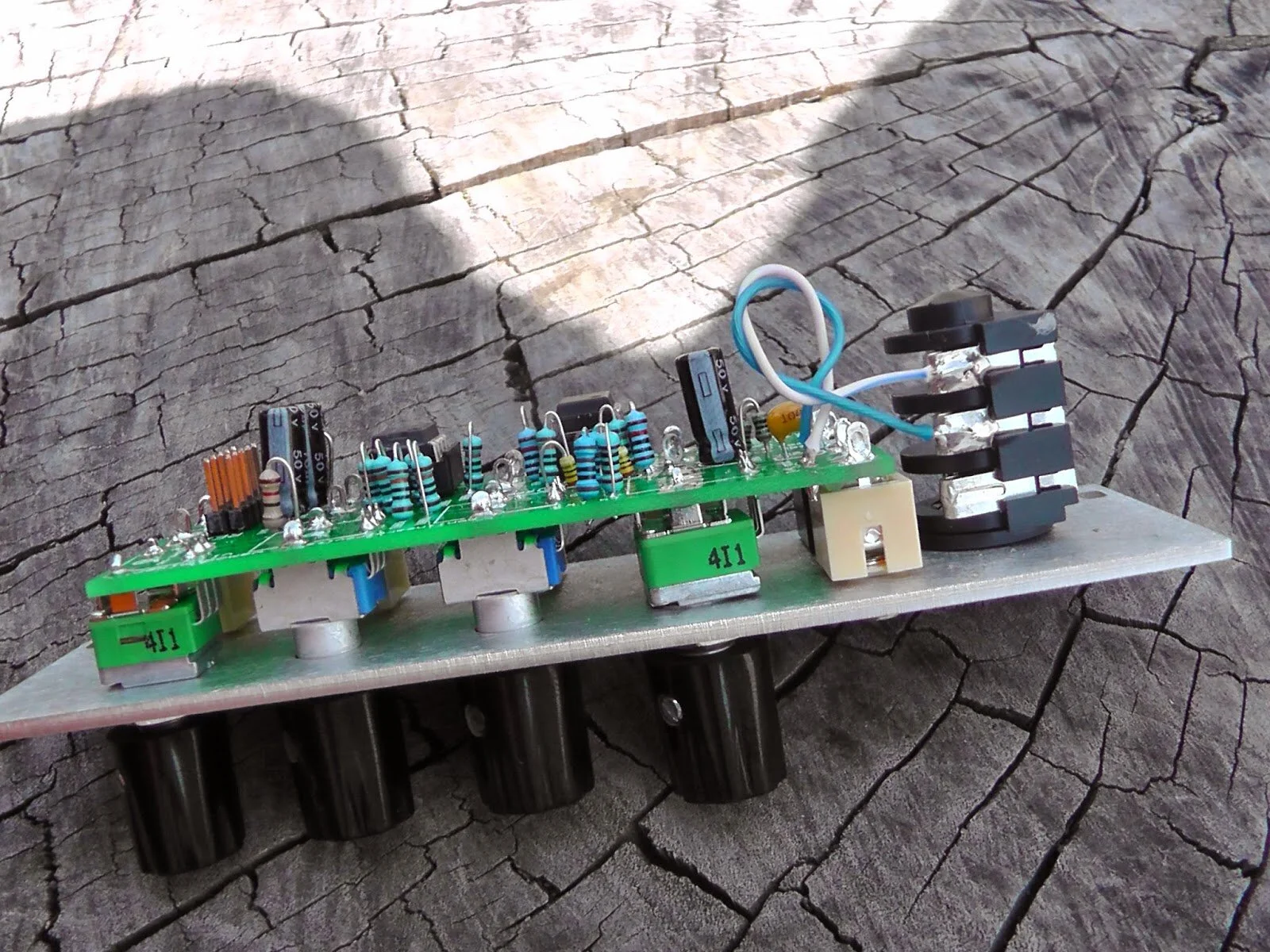

DIY
