CellF Action
Description/Usage
84hp

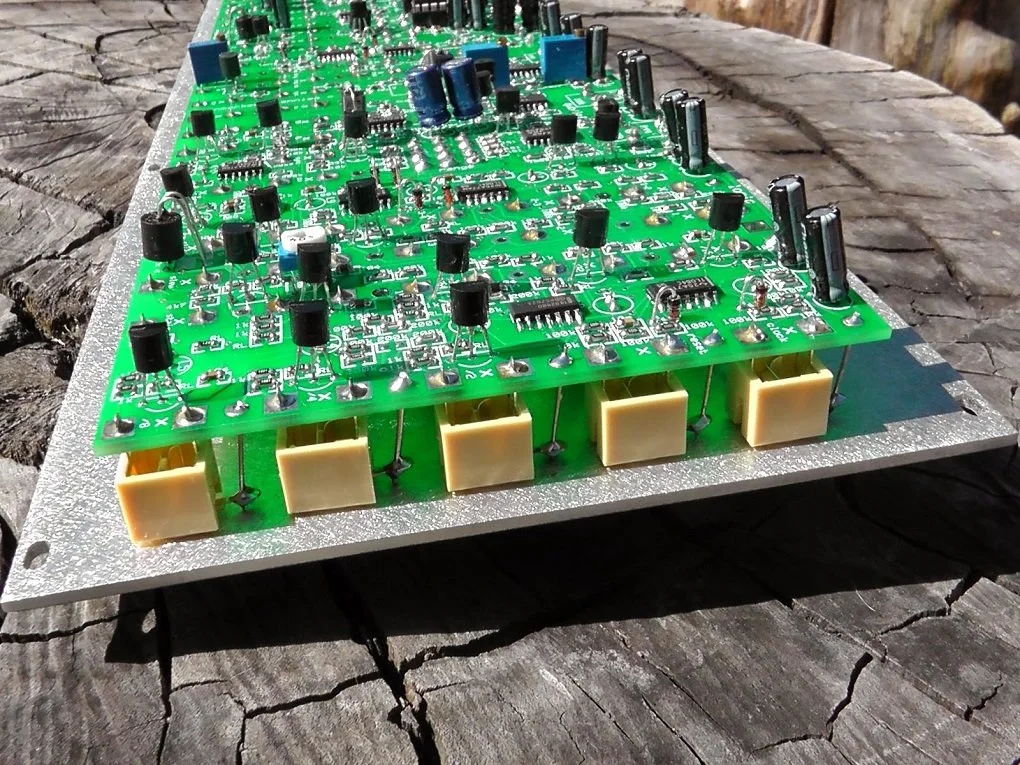

This is one of the designs from CellF, the PCB has been split into two sections and the 4PST toggle switch is no longer required, replaced by a DGxxx switching chip. The build guide has not yet been updated to show this.
Anyway, the Action PCB contains:
Clock Divider
Quad Boolean Logic
QUO/LPF (think Feague)
VCO
Chopper
DelayNoMore
Vac PiLL
DP Filter
Sloth chaos
FlipFlop Chaos
Offset Mixer

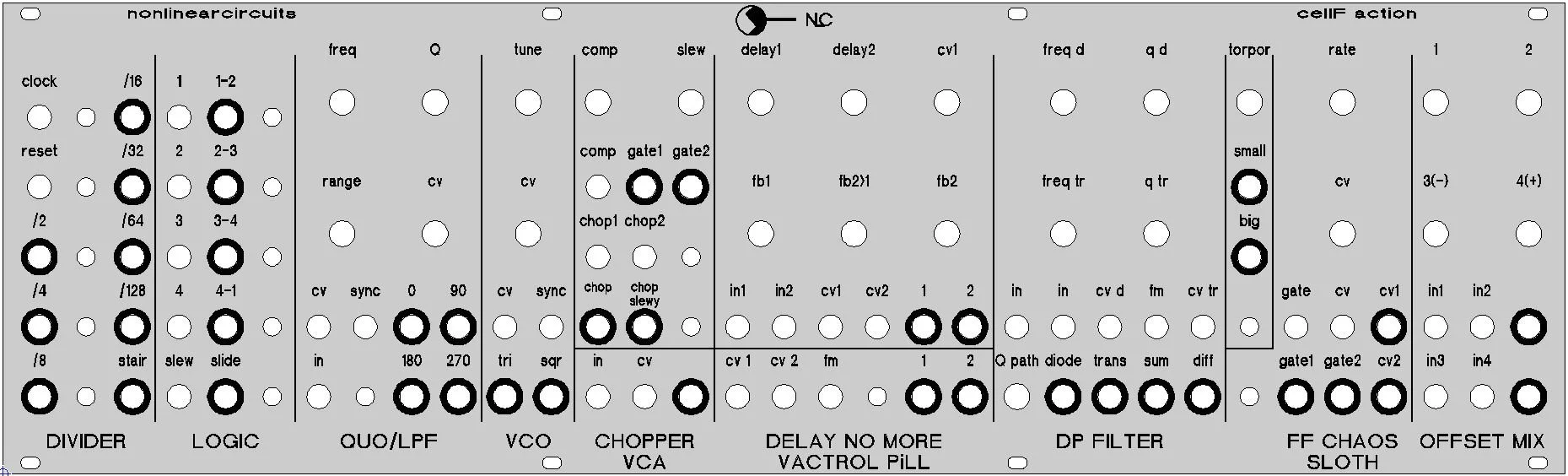

I do not have panels available anymore. The panel files are attached but these are FrontPanelExpress (FPE) files not PCB gerbers. I suggest not sending them to FPE as is, there are various methods to reduce costs. I had these made locally using the DXF files. Unfortunately that company is no longer around. At least one DIYer has made a few PCB panels, check the NLC Builders Guild to see if any are left.
For now, just 25 of these in stock. If the demand is there I will get more. The price is for one PCB set is USD50.
